jjw-500151
Specifications
| Model Number | 500151 |
| Motor | Brush 250W × 2 pcs, EABS brake |
| Brake | EABS brake |
| Battery | DC24V 12Ah lead acid battery 8.5kg |
| Charger | Input: AC180-240V 50-60Hz; Output: DC24V |
| Charging Time | 6-8 hours |
| Controller | Brush controller |
| Frame Material | Carbon Steel |
| Size (Unfold) | 113 * 74 * 95 CM |
| Size (Folded) | 83 * 39 * 71 CM |
| Carton Size | 83 * 42 * 76 CM |
| Front Wheel | 10 inch PU wheels |
| Rear Wheel | 16 inch wheels |
| Leg Rest | Carbon steel / Plastic |
| Seat Width | 57 CM |
| Seat Height | 52 CM |
| Seat Depth | 42 CM |
| Backrest Height | 43 CM |
| Max Load | 150 KG |
| Gross Weight | 45.68 KG |
| Net Weight | 41.1 KG (Contains 12AH lead-acid battery) |
Product Features
Dual Side Batteries

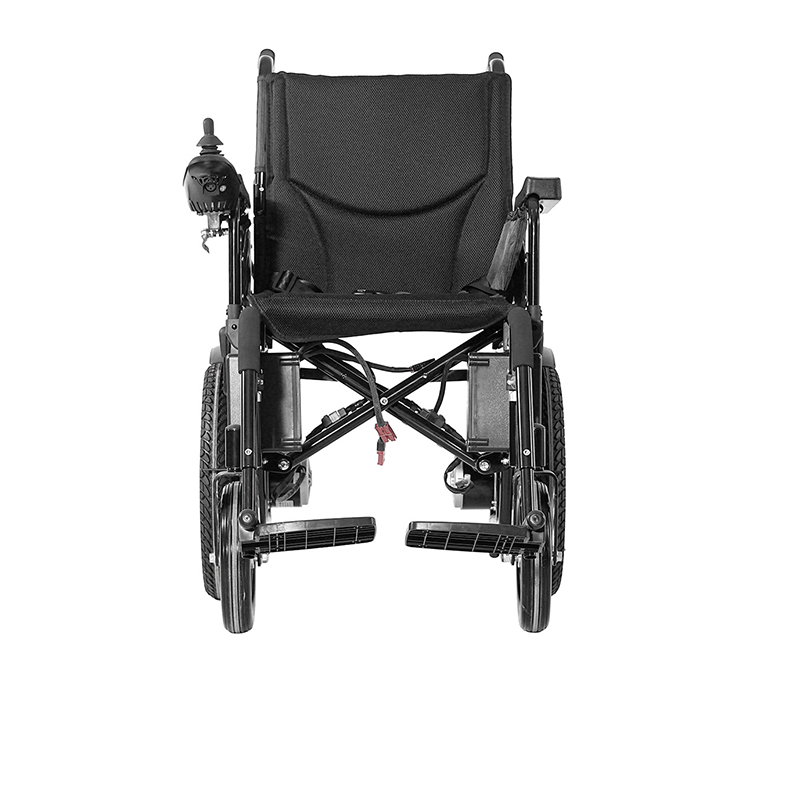

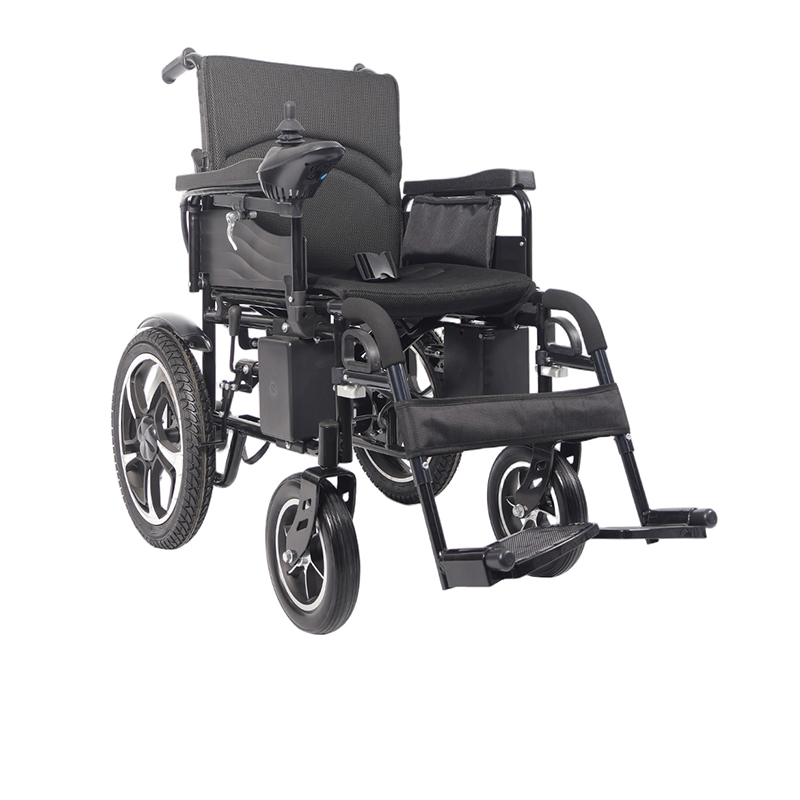

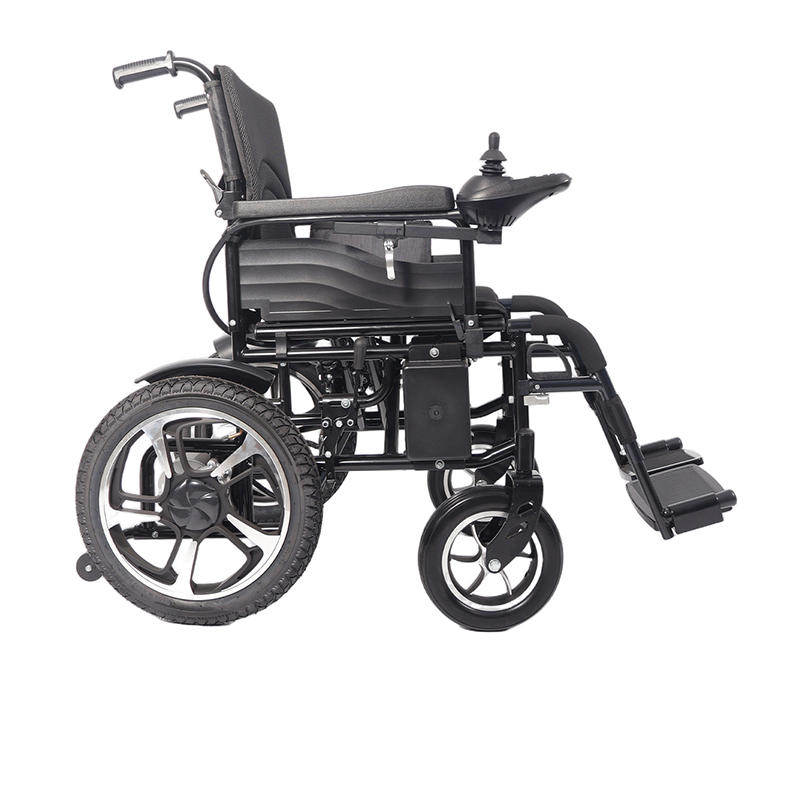

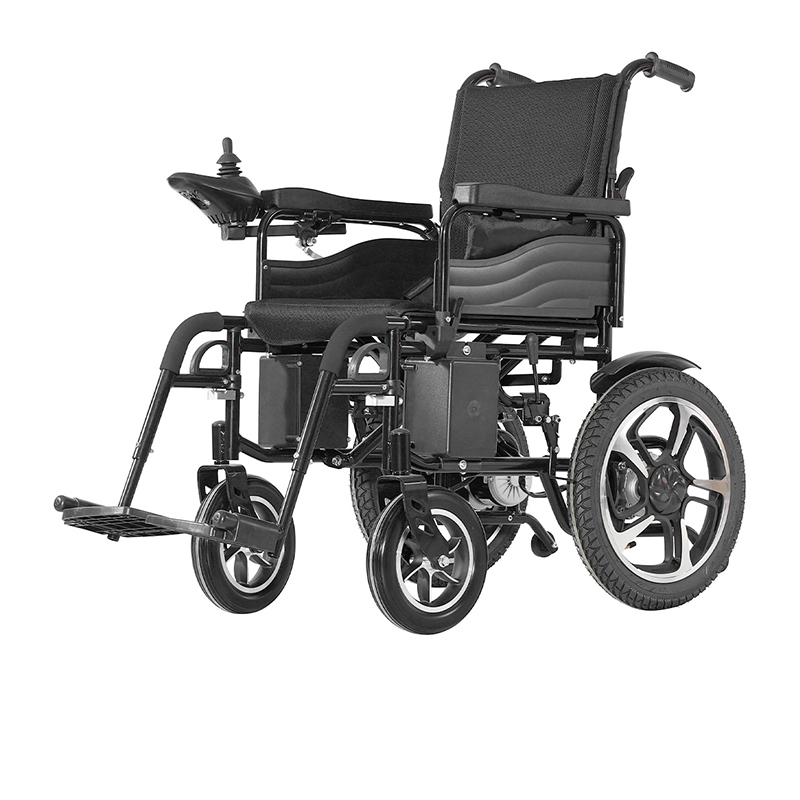

The 500151 electric wheelchair features two batteries hung on both sides.
Motor
250w*2 pcs (with EABS brake)
Battery
DC24V 12Ah lead-acid battery (8.5kg)
Charger
Input AC180-240V 50-60Hz; Output DC24V; Charging time: 6-8 hours
Controller
Brush controller
Frame Material
Carbon steel
Dimensions
Unfolded (113*74*95 CM) / Folded (83*39*71 CM) / Carton (83*42*76 CM)
Wheels
10-inch PU front wheels; 16-inch rear wheels
Seat & Backrest
Width 57CM / Height 52CM / Depth 42CM; Backrest height 43CM
Load & Weight
Max load 150KG; Gross weight 45.68kg; Net weight (with 12AH battery) 41.1kg
