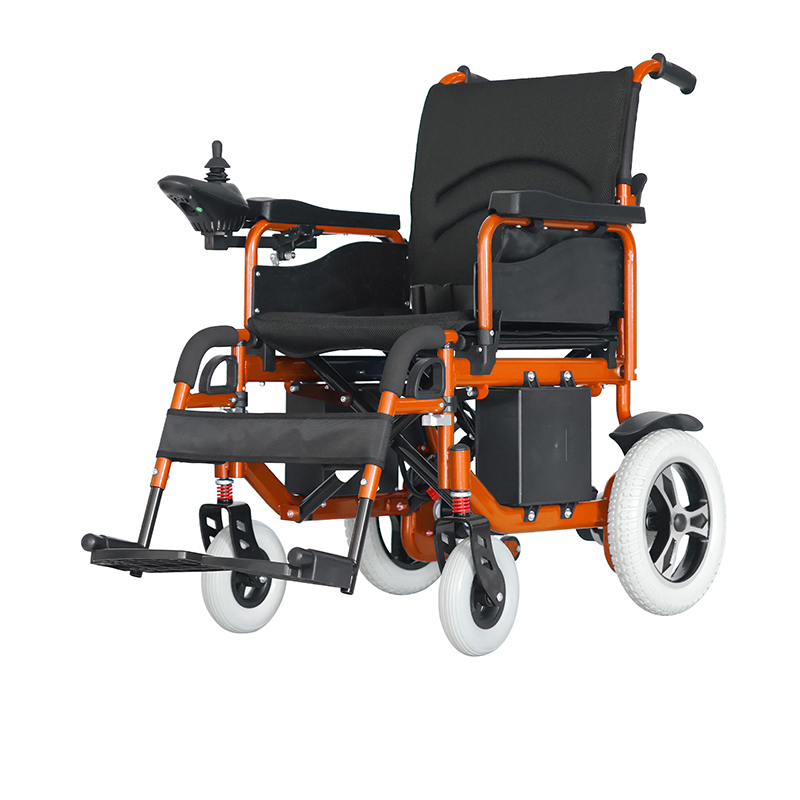

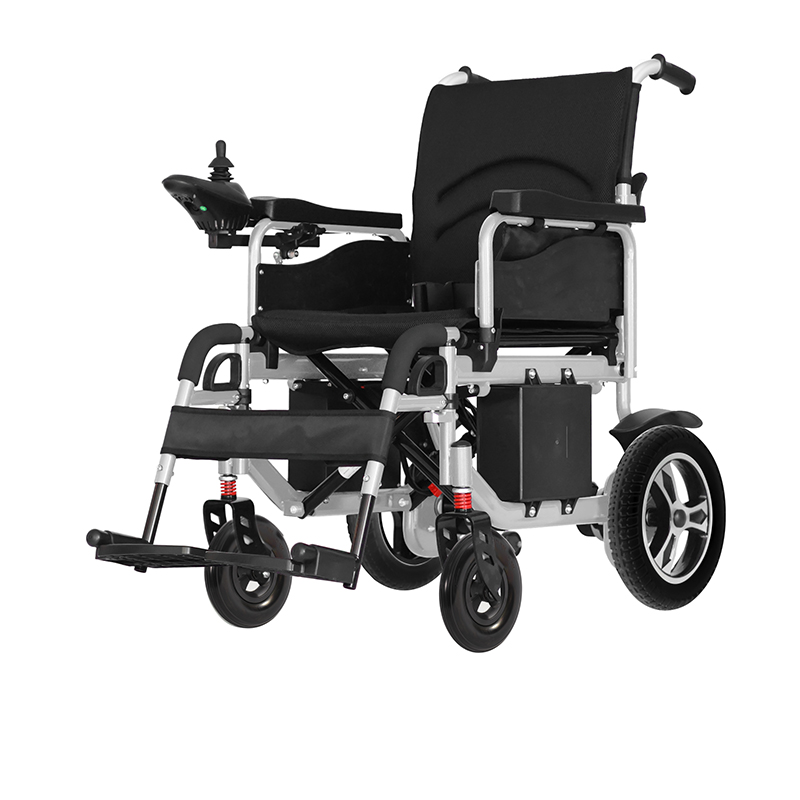

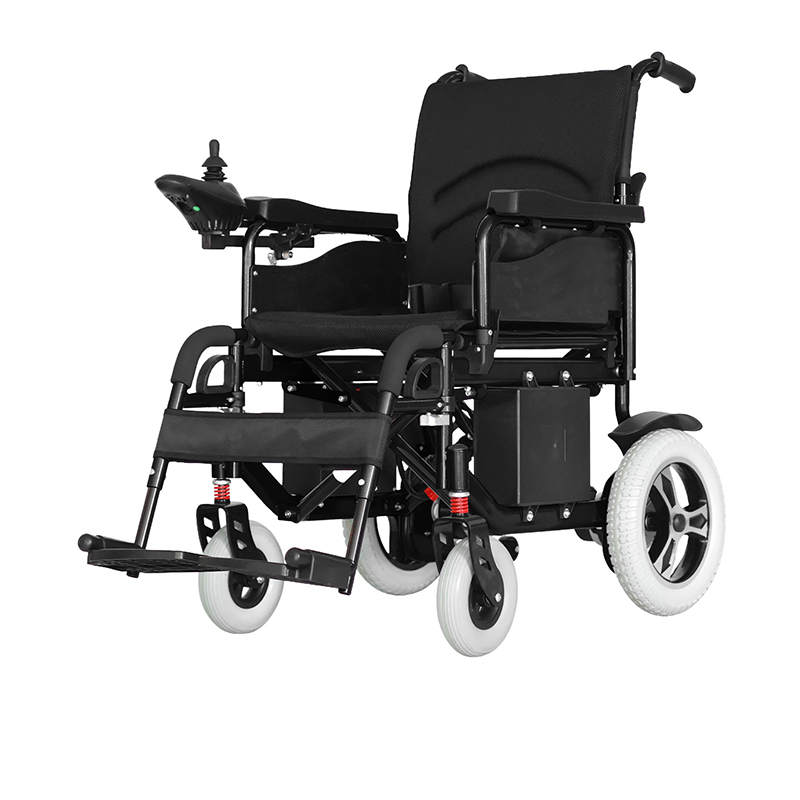

JJW-500155
The 50155 electric wheelchair comes with solid wheels with aluminum hubs + dual batteries hung on both sides to extend usage time.
Specifications
| Model Number | 500155 |
| Motor | Brush 250W × 2, electromagnetic brake |
| Brake | Electromagnetic brake |
| Battery | DC24V 20AH lead acid battery 13.1KGS |
| Charger | Input: AC180-240V 50-60Hz; Output: DC24V |
| Charging Time | 6-8 hours |
| Controller | Brush controller |
| Frame Material | Carbon Steel |
| Size (Unfold) | 113 * 61 * 93 CM |
| Size (Folded) | 68 * 45 * 72 CM |
| Carton Size | 74.5 * 46 * 76.5 CM |
| Front Wheel | 8 inch PU wheel |
| Rear Wheel | 12 inch wheels with aluminum hub |
| Leg Rest | Carbon steel / Plastic |
| Seat Width | 45 CM |
| Seat Height | 50 CM |
| Seat Depth | 41 CM |
| Backrest Height | 43 CM |
| Max Load | 150 KG |
| Gross Weight | 48.38 KG |
| Net Weight | 43.46 KG (contains 20AH lead-acid battery) |
Product Features
Solid Wheels & Dual Batteries
The 500155 electric wheelchair comes with solid wheels with aluminum hubs + dual batteries hung on both sides to extend usage time.
Motor
Brush 250w*2 (with electromagnetic brake)
Battery
DC24V 20AH lead-acid battery (13.1KGS)
Charger
Input AC180-240V 50-60Hz; Output DC24V; Charging time: 6-8 hours
Controller
Brush controller
Frame Material
Carbon steel
Dimensions
Unfolded (113*61*93 CM) / Folded (68*45*72 CM) / Carton (74.5*46*76.5 CM)
Wheels
8-inch PU front wheel; 12-inch solid rear wheels (aluminum hub)
Seat & Backrest
Width 45CM / Height 50CM / Depth 41CM; Backrest height 43CM
Load & Weight
Max load 150KG; Gross weight 48.38kg; Net weight (with 20AH battery) 43.46kg
