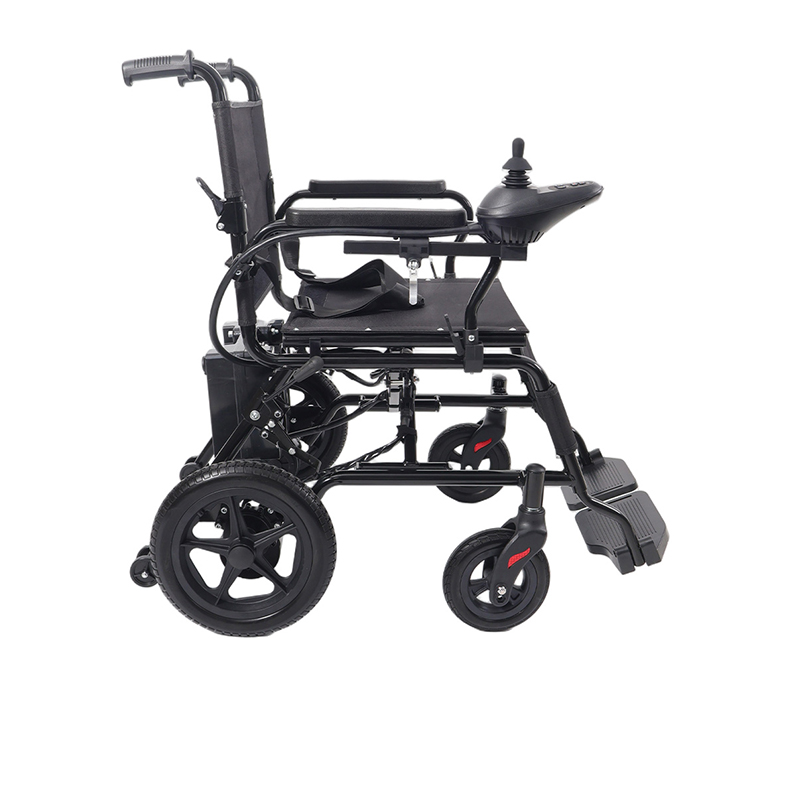

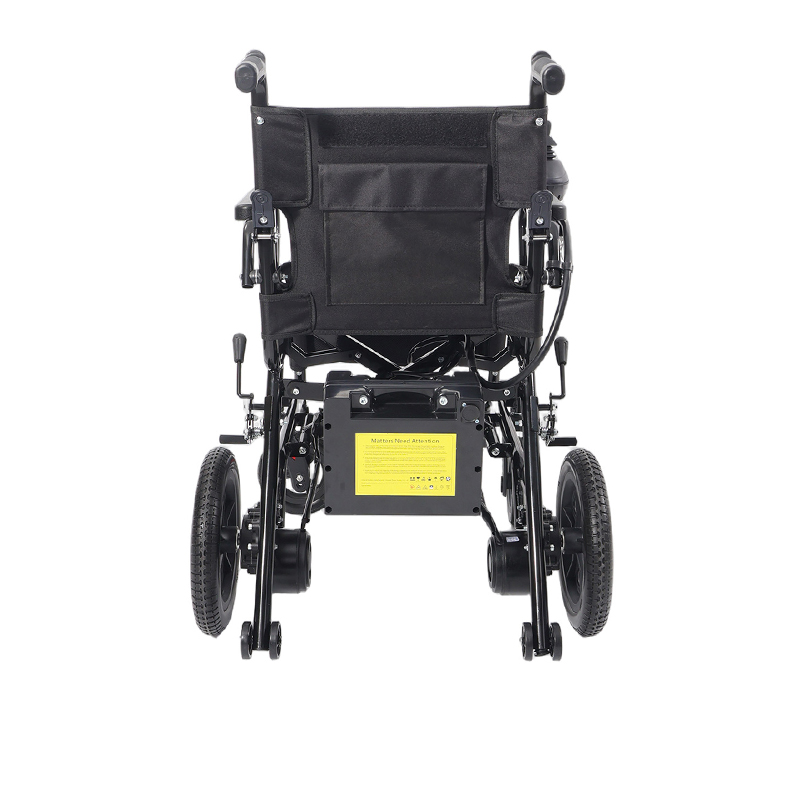

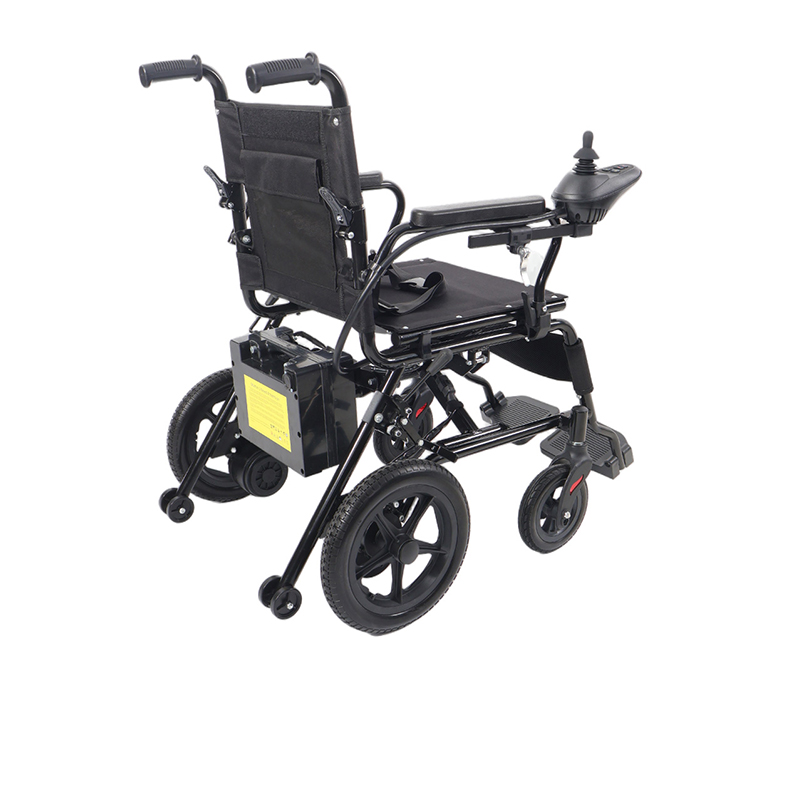

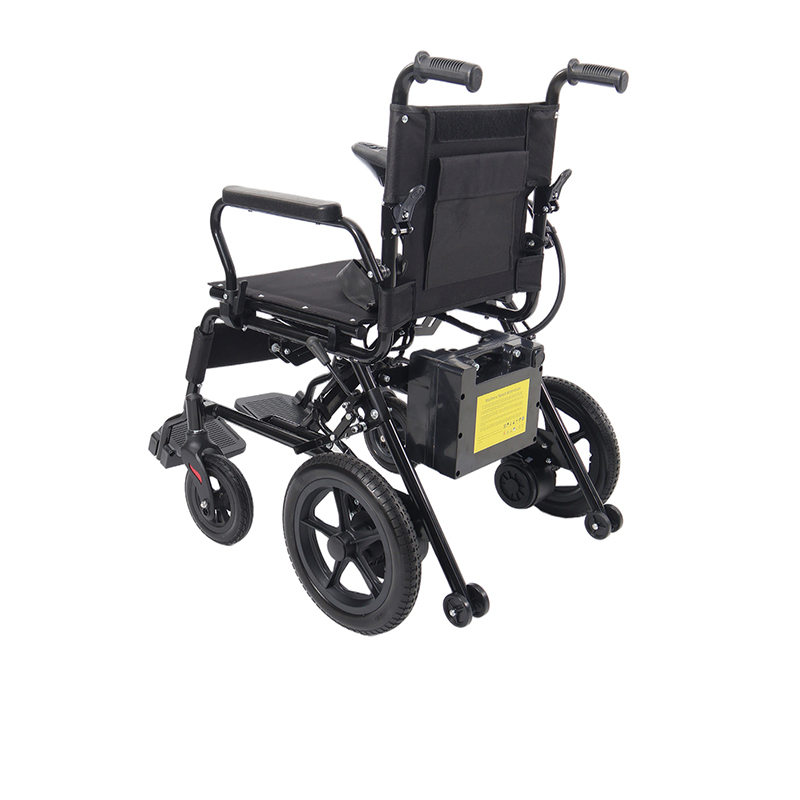

JJW-500311
The JJW-500311 electric wheelchair is an economy model designed for cost-effective use.
Specifications
| Model Number | JJW-500311 |
| Motor | Brush 250W × 2 pcs, electromagnetic brake |
| Brake | Electromagnetic brake |
| Battery | DC24V 12AH (8.5KG) / DC24V 20AH (13KG) |
| Charger | Input: AC180-240V 50-60Hz; Output: DC24V |
| Charging Time | 6-8 hours |
| Controller | Brush controller |
| Frame Material | Carbon Steel |
| Size (Unfold) | 89 * 64 * 92 CM |
| Size (Folded) | 75 * 38 * 68 CM |
| Carton Size | 77 * 38 * 74.5 CM |
| Front Wheel | 7 inch PU wheels |
| Rear Wheel | 11 inch wheels |
| Seat Width | 43 CM |
| Seat Height | 51 CM |
| Seat Depth | 40 CM |
| Backrest Height | 38 CM |
| Max Load | 135 KG |
| Gross Weight | 35 KG |
| Net Weight | 30.5 KG (with 12AH battery) |
Product Features
Economy Model
The JJW-500311 electric wheelchair is an economy model designed for cost-effective use.
Motor
Brush 250w*2pcs (with electromagnetic brake)
Battery
DC24V 12AH (8.5KG) / DC24V 20AH (13KG)
Charger
Input AC180-240V 50-60Hz; Output DC24V; Charging time: 6-8 hours
Controller
Brush controller
Frame Material
Carbon steel
Dimensions
Unfolded (89*64*92 CM) / Folded (75*38*68 CM) / Carton (77*38*74.5 CM)
Wheels
7-inch PU front wheels; 11-inch rear wheels
Seat & Backrest
Width 43CM / Height 51CM / Depth 40CM; Backrest height 38CM
Load & Weight
Max load 135KG; Gross weight 35kg; Net weight (with 12AH battery) 30.5kg
Product Details
