JJW-700321

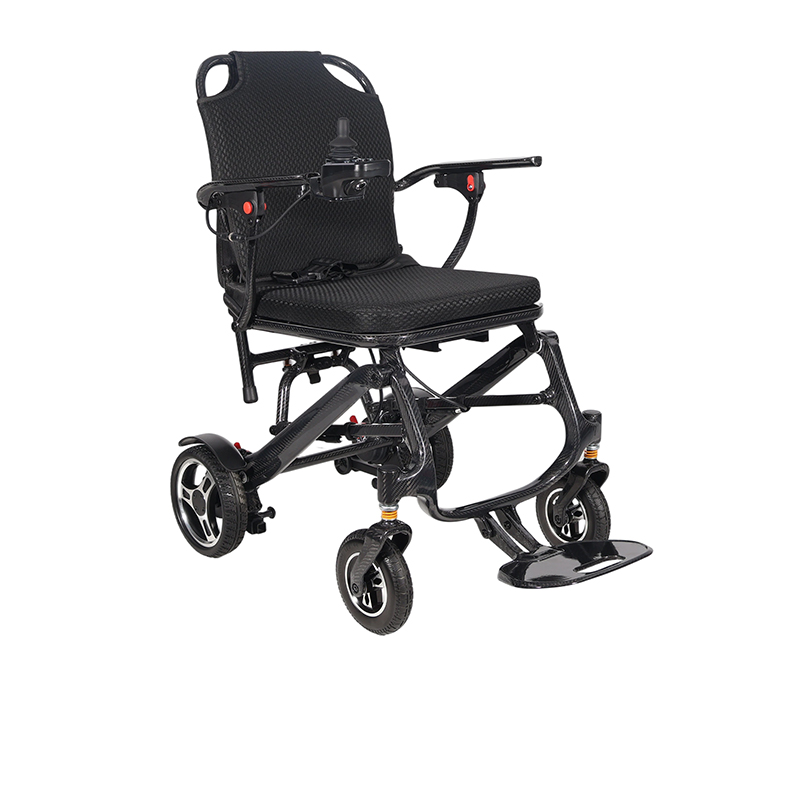

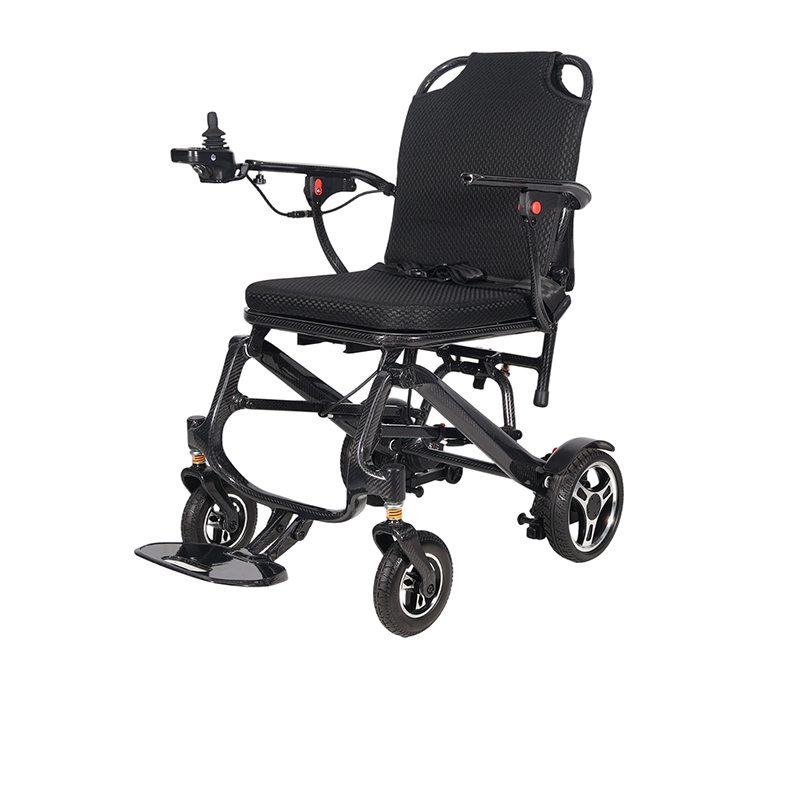

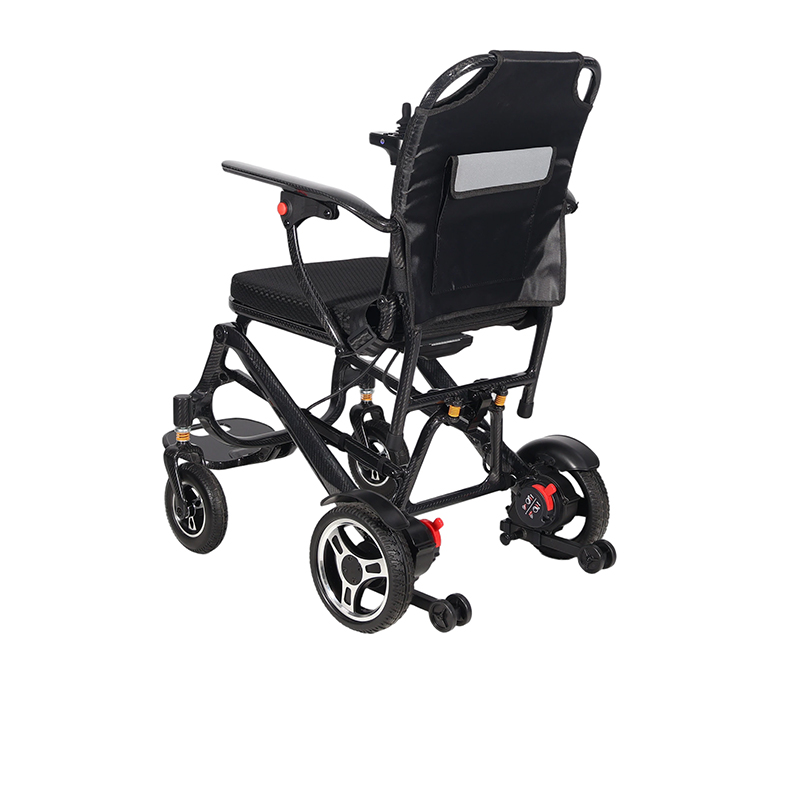

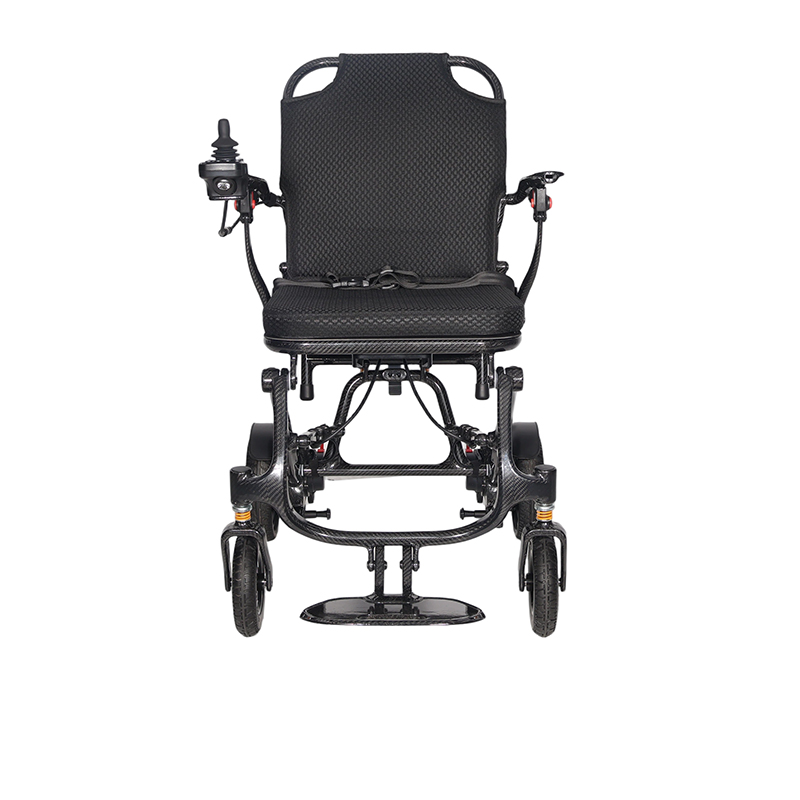

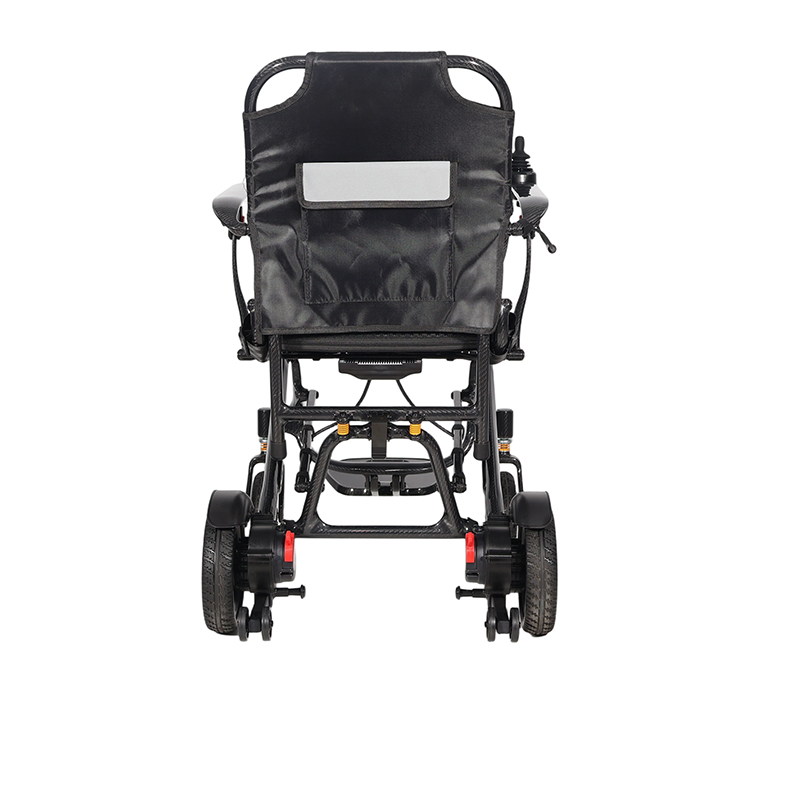

The 700321 electric wheelchair features a carbon fiber frame (including carbon fiber legrest), equipped with brushless 200w*2 motors (with electromagnetic brake) and a DC24V 7.8AH lithium battery (1.36 KGS).
Specifications
| Model Number | JJW-700321 |
| Motor | Brushless 200W × 2 |
| Brake | Electromagnetic brake |
| Battery | DC24V 7.8AH 1.36KGS |
| Charger | Input: AC180-240V 50-60Hz; Output: DC24V |
| Charging Time | 6-8 hours |
| Controller | Brushless controller |
| Frame Material | Carbon Fiber |
| Size (Unfold) | 93.5 * 57 * 93.5 CM |
| Size (Folded) | 56.5 * 32 * 74.5 CM |
| Carton Size | 60 * 35 * 78 CM |
| Front Wheel | 7 inch PU wheels |
| Rear Wheel | 8 inch wheels |
| Leg Rest | Carbon Fiber |
| Seat Width | 43 CM |
| Seat Height | 53.5 CM |
| Seat Depth | 42.5 CM |
| Backrest Height | 48 CM |
| Max Load | 135 KG |
| Gross Weight | 19.1 KG |
| Net Weight | 16.72 KG (including 7.8AH lithium battery) |
Product Features
Dimensions
Unfolded (93.5*57*93.5 CM) / Folded (56.5*32*74.5 CM)
Wheels
7-inch PU front wheels; 8-inch rear wheels
Seat
43CM width, 53.5CM height, 42.5CM depth; 48CM backrest height
Load & Weight
Max load 135KG; Gross weight 19.1KG; Net weight 16.72KG (including 7.8AH lithium battery)
